AJA Hi5-12G-TR 12G-SDI to HDMI 2.0 Mini-Converter with Fiber LC Transceiver

AJA Hi5-12G-TR 12G-SDI to HDMI 2.0 Mini-Converter with Fiber LC Transceiver
AJA Hi5-12G-TR 12G-SDI to HDMI 2.0 Mini-Converter with Fiber LC Transceiver
  • Product Code: AJA Hi5-12G-TR 12G-SDI to HDMI 2.0 Mini-Converter with Fiber
  • Availability: In Stock
  • Rp. 24,530,000
Add to Wish List Compare this Product
  • Key Features
    • 1 x 12G-HD/SD-SDI Input
    • 1 x 12G-SDI Fiber LC Transceiver
    • 1 x HDMI 2.0 Output
    • Fiber Loop-Out, Re-Clocked SDI Loop-Out

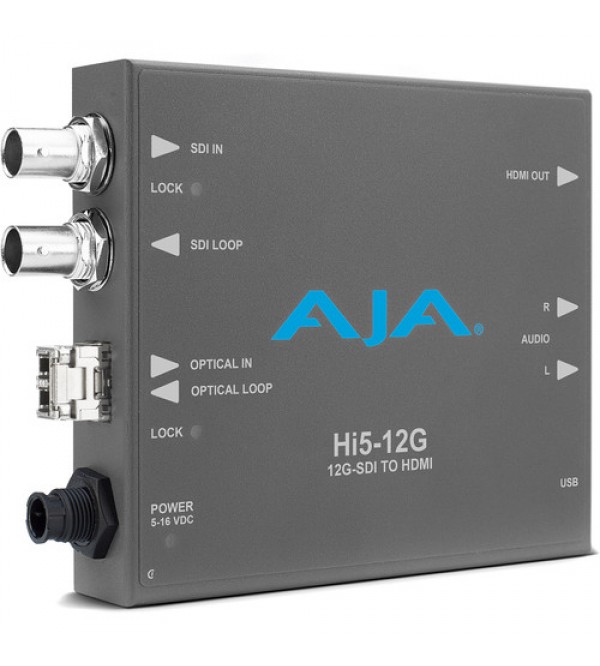

    The Hi5-12G-TR 12G-SDI to HDMI 2.0 Mini-Converter with Fiber LC Transceiver from AJA converts a 12G-SDI or fiber LC source input to an HDMI 2.0 output. This compact converter can extend a 4K fiber or 12G-SDI signal up to 6.2 miles away, and incorporates a fiber loop-out, and a re-clocked SDI loop-out. It supports video resolutions up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160). With support for up to DCI/UHD 4K60, HFRs (high frame-rates), and HDR metadata generation, the Hi5-12G-R integrates smoothly into your professional workflow.

    An LED indicator displays one of five colors when your input signal is locked: blue for 12G-SDI, purple for 6G-SDI, amber for 3G-SDI, red for HD-SDI, or green for SD-SDI. A USB port enables easy upgrades and configuration with the included Mini-Config software.

    Input/output up to eight embedded audio channels via a convenient single-cable audio/video connection. The AJA Hi5-12G-TR also provides 2-channel RCA-style audio outputs for separate audio monitoring. This converter includes a universal power supply with international plug connectors for worldwide use.

    Key Features

    • Converts a 12G-SDI input or fiber source to an HDMI 2.0 output
    • Supports HDMI 2.0b to 18 Gb/s for UHD 4K 60/59.94/50 4:2:2/4:4:4
    • Supports video resolutions up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160)
    • Incorporates a fiber loop-out, and a re-clocked SDI loop-out
    • Extends 4K signals up to 6.2 miles
    • HDR support with HDR10 and HLG (hybrid log gamma)
    • An LED signal-lock display indicates your input source-type with one of five colors
    • Input/output up to eight embedded-audio channels
    • Additional 2-channel RCA analog audio output
    • Configure and update via the USB port and the included Mini-Config software
    • Universal power supply with international plug connector set
    • Compact and portable form

    Specifications :

    Video
    Supported Video FormatsDCI 4K: 4096 x 2160p
    UHD 4K: 3840 x 2160p
    2K: 2048 x 1080p
    HD: 1920 x 1080p
    HD: 1920 x 1080i
    HD: 1280 x 720p
    HD: 720 x 576p
    HD: 720 x 576i
    HD: 720 x 480p
    HD: 720 x 480i
    Video Input
    Input Signal Selection12G Fiber: 1 x fiber LC
    SMPTE-2082/2081/424/297/292/259

    12G/HD/SD-SDI: 1 x BNC
    SMPTE-2082/2081/424/292/259
    Chroma SubsamplingYCbCr 4:2:2/4:4:4/4:2:0
    RGB 4:4:4, SMPTE or full-level
    Bit Depth8-, 10-, 12-bit (HFR 4K/UHD 4:4:4 limited to 8-bit)
    4K Signal IntegrationTwo-Sample Interleave (2SI) DCI/UHD 4K source mapping
    Optical Fiber Video InputNominal Wavelength, Receiver:
    1260 nm (minimum), 1620 nm (maximum)
    Optical Sensitivity: -10 dBm (minimum 12 Gb/s), -14 dBm (minimum 3 Gb/s)
    Overload Power: -2 dB (minimum)
    High Dynamic RangeHDR InfoFrame decoder as defined in CTA-861-G and HDMI v2.0b
    Supported Input Resolutions4096 x 2160: 60/59.94/50/30/29.97/25/24/23.98
    3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98
    2048 x 1080: 60/59.94/50/30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50
    576p: 50
    576i: 50
    480p: 59.94
    480i: 59.94
    Video Output
    Video Output Connectors12G Fiber: 1 x 12G-SDI fiber LC
    SMPTE-2082/2081/424/297/292/259

    12G/HD/SD-SDI: 1 x BNC
    SMPTE-2082/2081/424/292/259
    Chroma SubsamplingYCbCr 4:2:2/4:4:4
    RGB 4:4:4, SMPTE or full-level
    Bit Depth8-, 10-bit
    Optical Fiber Video OutputNominal Wavelength, Transmitter:
    1260 nm (minimum), 1310 nm (typical), 1360 nm (maximum)
    Optical Power: -5 dBm (minimum), 0.5 dBm (maximum)
    Extinction Ratio: 5.4 dB (minimum)
    Maximum Cable Distance (Optical)1.24 miles / 2 km
    Supported Output Resolutions1 x 12G-SDI:
    4096 x 2160: 60/59.94/50/30/29.97/25/24/23.98
    3840 x 2160: 60/59.94/50/30/29.97/25/24/23.98

    1 x 6G-SDI:
    4096 x 2160: 30/29.97/25/24/23.98
    3840 x 2160: 30/29.97/25/24/23.98

    1 x 3G-SDI (Level A or B dual-link):
    2048 x 1080p: 60/59.94/50/30/29.97/25/24/23.98
    2048 x 1080PsF: 30/29.97/25/24/23.98
    1080p: 60/59.94/50/30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p*: 60/59.94/50

    1 x 1.5G-SDI:
    2048 x 1080p: 30/29.97/25/24/23.98
    2048 x 1080PsF: 30/29.97/25/24/23.98
    1080p: 30/29.97/25/24/23.98
    1080PsF: 30/29.97/25/24/23.98
    1080i: 60/59.94/50
    720p: 60/59.94/50

    1 x 270 Mb SDI:
    625i: 50
    525i: 59.94
    Audio
    Audio Input DigitalEmbedded Audio: 24-bit, 8 channels
    Audio Input AnalogConnectors: 2 x RCA, 2 channels, -10 dBu (nominal)
    Audio Output DigitalEmbedded SDI Audio: 24-bit, 8 channels
    User Interface
    Configuration1 x USB
    Power
    Power Supply5-20 VDC regulated, 11 W
    Environmental
    Operating Temperature & Humidity32 to 104°F / 0 to 40°C*
    10-90 %, non-condensing
    Storage TemperaturePower Off:
    -40 to 140°F / -40 to 60°C
    Operating Altitude< 10,000 / 3048 m
