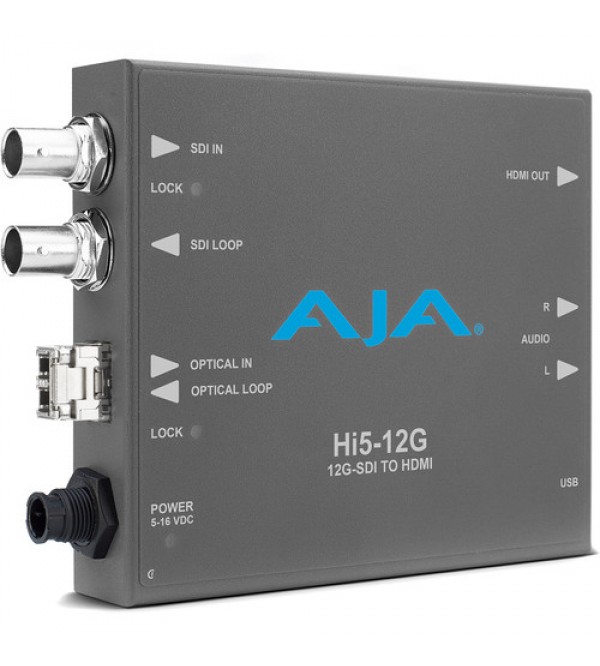

AJA Hi5-12G-R 12G-SDI to HDMI 2.0 Mini-Converter with Fiber LC Receiver

• 1 x 12G-HD/SD-SDI Input
• 1 x 12G-SDI Fiber LC Receiver
• 1 x HDMI 2.0 Output
• Re-Clocked SDI Loop-Out

The Hi5-12G-R 12G-SDI to HDMI 2.0 Mini-Converter with Fiber LC Receiver from AJA converts a 12G-SDI or fiber LC source input to an HDMI 2.0 output. This compact converter can extend a 4K fiber or 12G-SDI signal up to 6.2 miles away, and incorporates a re-clocked SDI loop-out. It supports video resolutions up to DCI 4K (4096 x 2160) and UHD 4K (3840 x 2160). With support for up to DCI/UHD 4K60, HFRs (high frame-rates), and HDR metadata generation, the Hi5-12G-R integrates smoothly into your professional workflow.

An LED indicator displays one of five colors when your input signal is locked: blue for 12G-SDI, purple for 6G-SDI, amber for 3G-SDI, red for HD-SDI, or green for SD-SDI. A USB port enables easy upgrades and configuration with the included Mini-Config software.

Input/output up to eight embedded audio channels via a convenient single-cable audio/video connection. The AJA Hi5-12G-R also provides 2-channel RCA-style audio outputs for separate audio monitoring. This converter includes a universal power supply with international plug connectors for worldwide use.
