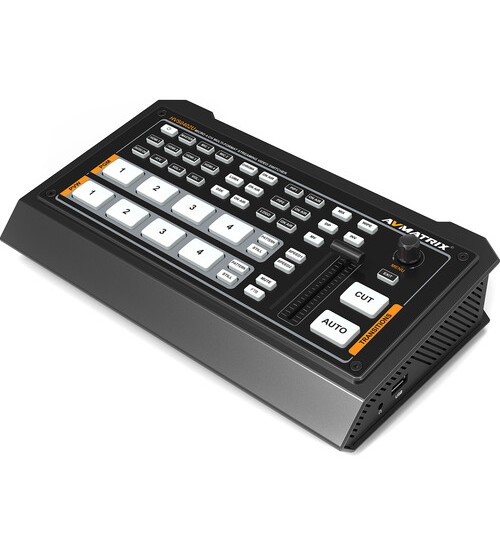

AVMATRIX HVS0402U 4-Channel Live Streaming Video Switcher

AVMATRIX HVS0402U 4-Channel Live Streaming Video Switcher

Features

>> Compact 4-Channel Video Switcher

>> 4 x Autodetected HDMI Inputs

>> HDMI PGM and Multiview Outputs

>> 1 x USB Type-C Output to Computer Apps

>> Supports up to 1080p60 Video I/O

>> Luma/Chroma Key, Mix/Fade/Wipe Effects

>> T-Bar, Auto, and Cut Transitions

>> Audio Mixing, Multiview, PiP Layout


The HVS0402U features a tally interface that supports GPIO, mute, still frame, and fade-to-black (FTB) functionality. A power supply, USB cable, and tally connector are included, and the 1/4"-20 thread on the bottom provides the ability to mount onto a separately available stand or in a console.


>> Four autodetected HDMI inputs

>> One HDMI Program (PGM) output and one HDMI multiview output

>> One USB Type-C for capturing and streaming on a computer with software

>> AUX output, configurable and assignable

>> Upstream key: Luma key, chroma key, two picture-in-picture (PiP), and one picture-over-picture (PoP)

>> Downstream key and logo overlay

>> T-bar/auto/cut transitions; wipe (9x2 patterns)/mix/dip effects

>> Audio mixer: HDMI embedded audio and 2-channel mic/line input; audio delay available

>> 3.5mm headphone output

>> Media library: 49 default patterns, 16 imported images, 16 captured images, and 2 color generators

>> LAN port for computer software remote control

>> Tally support for fade-to-black (FTB), mute, still, and GPIO

Customer configuration import and export via USB Type-A as well as input of image and logo from drives up to 256GB

Technical
