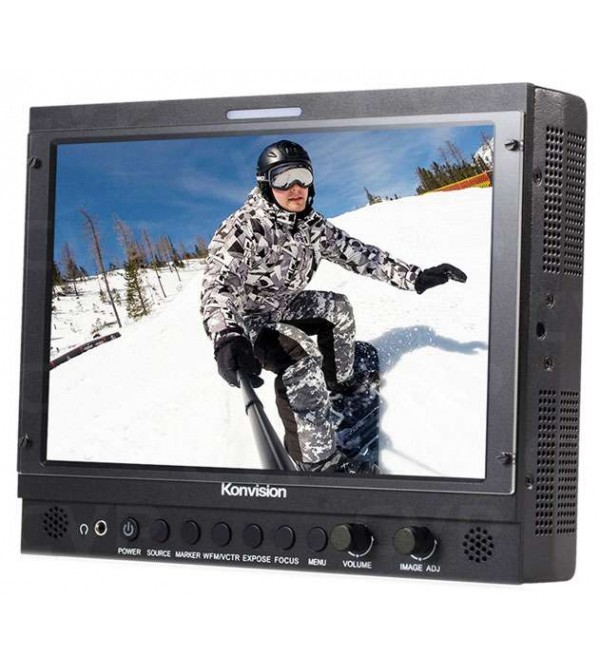

Konvision 7051W On-Camera Monitor - 7 Inch
KVM-7051W is a cost effective 7-inch portable monitor with a IPS LCD panel (1024x600 high resolution). This monitor featuresa a metal casing design, slim and light weight construction, and camera mounting on all sides.
Spesification
Display Size 7"
High Resolution 1024×600
Aspect Ratio 16:9
Wide Viewing Angle 178°(H) / 178°(V)
Pixel Pitch 0.050×0.150(mm)
Colour Depth 16.7M
Back Light LED
Brightness 400cd/m2
Contrast Ratio 800:1
Operating Temperature -10℃～50℃
Input Voltage DC 6.5V-25V
Power Consumption 15W
Power-Saving Mode Turn off unimportant Key Automatically if no signal input
Features
7" 1024x600 native resolution
3G-SDI 4:4:4 12Bit signals (SMPTE 425M A/B)
2x3G/HD-SDI auto sensing
HDMI-to-SDI conversion output (up to 1080p)
Composite video
PIP/PBP (size/position adjustable)
Waveform, Vectorscope, Histogram
DSLR full screen switch
Picture Flip, H/V Delay
Focus Assist
x9 times Zoom
False Colour, Zebra
Scan, Marker, Blue Only/Mono
Time Code
Audio Meter
Power-off Memory
Wide DC range 6.5~25V
Various battery plates
RS-232
Tally
