Deity Microphones W.Lav Micro ( DA35 )

• For Microdot-Equipped Mic Transmitters
• For Transmitters with Locking 3.5mm
• 3mm Diameter Mic, 1.2mm Cable Width
• Omnidirectional Polar Pattern
• 50 Hz to 20 kHz Frequency Range
• 5.9' Attached Cable with Microdot Jack
• Includes Locking 3.5mm Jack Adapter
• Works with Industry-Standard Accessories
• Includes Foam Windscreen
• Includes Carrying Pouch

Deity Microphones Micro Overview

The beige Deity Microphones W.Lav Micro DA35 Bundle is a subminiature omnidirectional lavalier microphone with a Microdot to locking 3.5mm adapter designed to deliver clear, natural speech reproduction in film and video production applications.

The 3mm diameter mic element and 1.2mm cable width make the mic visually discreet and easy to conceal in clothing or costumes. The attached 5.9' silicone cable is designed to minimize rustling and handling noise even when threaded beneath tight-fitting garments. The cable's Microdot connector allows for easy integration with a Microdot-equipped mic transmitter. The included adapter converts the Microdot output to a locking 3.5mm jack, making it compatible with a variety of wireless microphone transmitters from Azden, Nady, Rode, Senal, Sennheiser, Tascam, and Zoom.

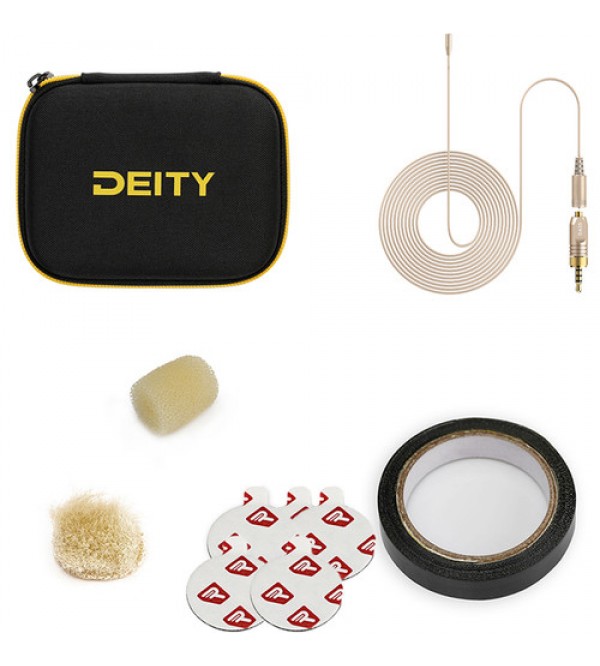

The W.Lav Pro's condenser capsule offers an omnidirectional polar pattern that picks up audio from all around the capsule, helping to keep levels consistent even when the talent turns away from the mic. Utilize the supplied foam windscreen to inhibit light wind noise and plosives. A Rycote Overcover Advanced along with a set of Stickies Advanced are supplied to assist in mic placement and concealment. A cable organizer and carrying pouch are also included.

• Beige color and subminiature size; ideal for use in film and video production
• Electret condenser capsule in a housing with a 3mm diameter that's easy to conceal
• The cable is only 1.2mm in width, making it easy to hide—even under tight clothing and costumes
• Picking up sound from all directions, the omnidirectional polar pattern provides sonic consistency in a variety of positions
• 50 Hz to 20 kHz frequency response

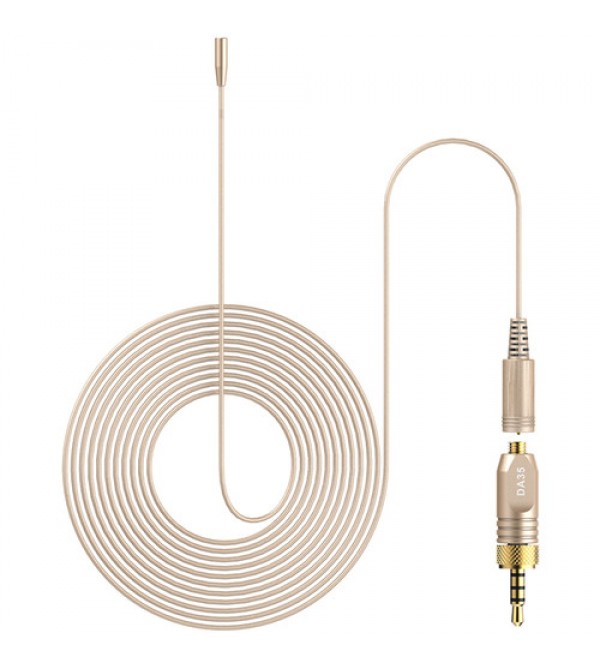

• 5.9' attached cable with Microdot connector for compatibility with Microdot-equipped wireless transmitters
• Includes a Microdot to locking 3.5mm jack adapter to allow connection to select wireless microphone transmitters
• Compatible transmitters: Deity (BP-TX, HD-TX), Sennheiser Evolution Series (G1, G2, G3, G4, SK AVX, SK D1, SK 1093, SK 20), Senal (AWS-2000), Zoom (F1-LP, F1-SP), Tascam (DR-10L, DR-10C), Rode (RODELink TX-Belt, TX-XLR, Wireless Go)
• Includes foam windscreen to reduce wind and breath noise

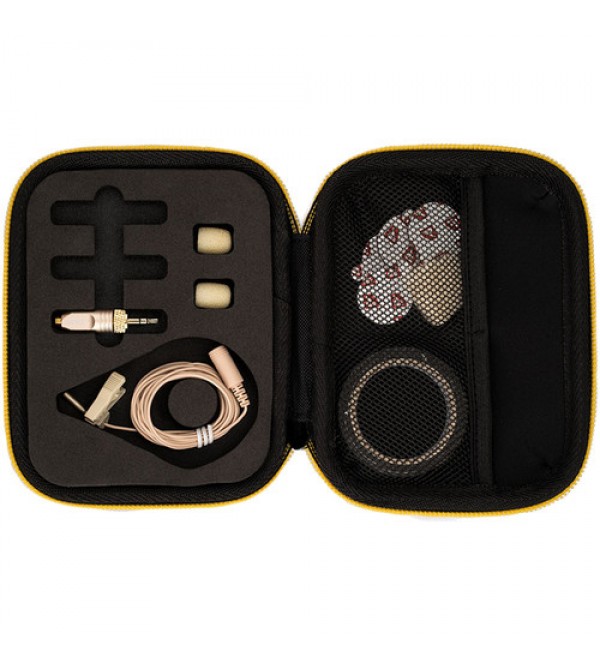

• Includes carrying pouch and cable organizer

Deity Microphones Micro Specs

Microphone

Form Factor	Lavalier
Sound Field	Mono
Capsule	1 x Electret Condenser
Diaphragm	0.1" / 3 mm
Polar Pattern	Omnidirectional
Windscreen	Foam (Included)

Performance

Frequency Range	50 Hz to 20 kHz
Maximum SPL	110 dB SPL (1 kHz)
Impedance	3 Kilohms
Sensitivity	-41 dB at 1 kHz
Dynamic Range	85 dB
Signal-to-Noise Ratio	269 dB SPL (1 kHz)
THD	< 0.5%

Connectivity

Output Connectors	1 x Microdot 1-Pin Male
Cable Length	5.9' / 1.8 m
Cable Diameter	0" / 1.2 mm

Physical

Color	Beige
Mounting	Surface-Mount (with Included Hardware)
Dimensions	ø: 0.1 x H: 0.5" / ø: 3 x H: 12 mm
Weight	0.3 oz / 8 g
