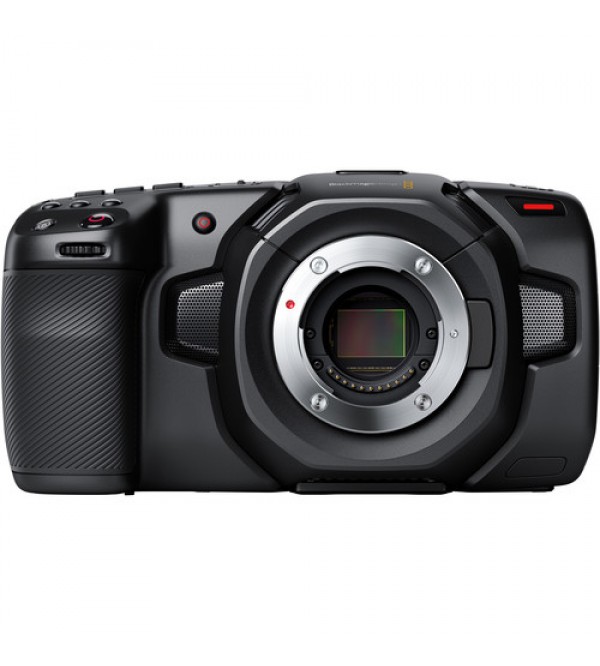

Blackmagic Design Pocket Cinema Camera 4K

Product Highlights

• 4/3" Sized HDR Sensor
• Record DCI 4K 4096 x 2160 up to 60 fps
• Dual Native ISO to 25,600
• 5" Touchscreen Display
• Active Micro Four Thirds Lens Mount
• Record up to 120 fps Windowed HD
• CFast 2.0 & SD/UHS-II Card Slots
• External Recording via USB Type-C
• 13-Stop Dynamic Range, 3D LUT Support
• Includes DaVinci Resolve Studio License

•


  The Blackmagic Design Pocket Cinema Camera 4K features a 4/3" sensor for capturing up to 4096 x 2160 DCI 4K images at rates up to 60 fps in a variety of codecs including CinemaDNG Raw/Raw 3:1/Raw 4:1, and various ProRes 422 options. Slow-motion rates up to 120 fps are available in cropped Full HD. Its Micro Four Thirds lens mount accommodates the original, lightweight Pocket Cinema Camera lenses, and can be used with PL, C, EF, and other lenses with the use of separately available adapters. A dual-native ISO up to 25,600 is featured for low-light capture, and 13 stops of dynamic range provide rich HDR images.


  Record using the internal CFast 2.0 and SD/UHS-II card slots, or employ the USB-C output for capturing longer clips to an external drive. The Pocket Cinema Camera 4K's 5" touchscreen LCD display reduces the need for an external, onboard monitor, while a full-sized HDMI port enables you to output a signal to a larger display. The menu and interface are the same as the ones found on the URSA Mini camera, and 3D LUTs can be applied for monitoring or for baking in your look when you're ready to commit.

  Audio features include a mini-XLR input with phantom power for pro-style mics, a 3.5mm jack, and an internal stereo mic. Additional features include the same Blackmagic OS as the URSA Mini, and Bluetooth remote control. A license key for DaVinci Resolve Studio is included for versatile post-production control. The Pocket Cinema Camera 4K's carbon fiber polycarbonate build provides lightweight strength and durability, and power options include running off a Canon LP-E6 type battery or the included power supply.




  Specifications:

  Image Sensor
  Image Sensor Size	18.96 x 10.00 mm (4/3")
  Sensor Type	CMOS
  Sensor Resolution	4096 x 2160
  Color Filter	Bayer
  Shutter Type	Not Specified by Manufacturer
  ISO	25,600 (Native)
  Advertised Dynamic Range	13 Stops

  Camera
  Lens Mount	Micro Four Thirds
  Lens Communication	Not Specified by Manufacturer
  Built-In ND Filter	None
  Built-In Microphone Type	Stereo
  Recording Media	1 x CFast Card Slot 1 x SDXC UHS-II Card Slot

  Internal Recording
  Raw Recording	CinemaDNG: 4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps (270 MB/s)
  Recording Modes	ProRes 422HQ:  3840 x 2160p up to 23.98/24/25/29.97/30/50/59.94/60 fps (110 MB/s)  1920 x 1080p up to 23.98/24/25/29.97/30/50/59.94/60/120 fps (27.5 MB/s)  ProRes 422:  3840 x 2160p up to 23.98/24/25/29.97/30/50/59.94/60 fps (73.6 MB/s)  1920 x 1080p up to 23.98/24/25/29.97/30/50/59.94/60/120 fps (18.4 MB/s)  ProRes 422LT:  3480 x 2160p up to 23.98/24/25/29.97/30/50/59.94/60 fps (51 MB/s)  1920 x 1080p up to 23.98/24/25/29.97/30/50/59.94/60/120 fps (12.75 MB/s)  ProRes 422 Proxy:  3840 x 2160p up to 23.98/24/25/29.97/30/50/59.94/60 fps (22.4 MB/s)  1920 x 1080p up to 23.98/24/25/29.97/30/50/59.94/60/120 fps (5.6 MB/s)

  External Recording
  Raw Output	USB:  4096 x 2160 at 23.98/24/25/29.97/30/50/59.94/60 fps

  Interfaces
  Video Connectors	1 x HDMI Output
  Audio Connectors	1 x 3-Pin Mini XLR Mic/Line Level (+48 V Phantom Power) Input 1 x 1/8" (3.5 mm) Stereo Mic Level Input 1 x 1/8" (3.5 mm) TRRS Headphone/Microphone Output
  Other I/O	1 x USB Type-C Data Input/Output
  Wireless Interfaces	Bluetooth Control

  Display
  Display Type	LCD
  Screen Size	5"
  Touchscreen	Yes
  Screen Resolution	1920 x 1080
